Stiebel Eltron Mini 2.1 Techs and Specs

• Voltage

  120 Volts

• Kilowats

  1.8 KW

• Max. Amp Load

  16 Amps

• Min. Circuit Breaker size

  1 x 20 Amps

• Min Required Wire Size AWG Copper

  1 x 12 gauge

• Wiring

  comes with 24 inch pigtail

• Min Water Flow to activate unit

  .21 gpm

• Max Water Flow Rate

  .32 gpm

• Nominal Water Volume

  .026 gallons

• Temperature Range

  80 to 140 Degrees F

• Working Pressure MAX

  150 Psi

• Water Connections

  3/8 inches NPT

• Height

  6 1/2 inches

• Width

  7 1/2 inches

• Depth

  3 1/4 inches

• Weight

  4 lbs

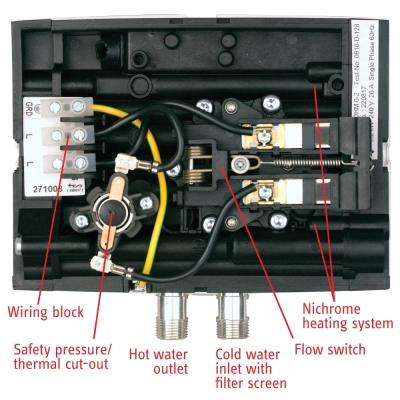

The Stiebel Eltron Mini 2.1 Electric Tankless Water Heater is designed for installation at the point-of-use. The Mini 2.1 heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, the Mini 2.1 water heater is equipped with a safety high-limit with manual reset.

The combination of meticulous German engineering and the best available materials ensure that every Mini 2.1 is of the highest quality and designed for many years of trouble-free service. Nobody can compare with our exceptional reliability record and customer support services!

Flow controls and faucet aerators are highly recommended in conjunction with all Mini tankless water heaters. The Mini 2-1 is internally restricted to 0.32 GPM and should only be used in warm Climates with warm incomming water temperatures.
