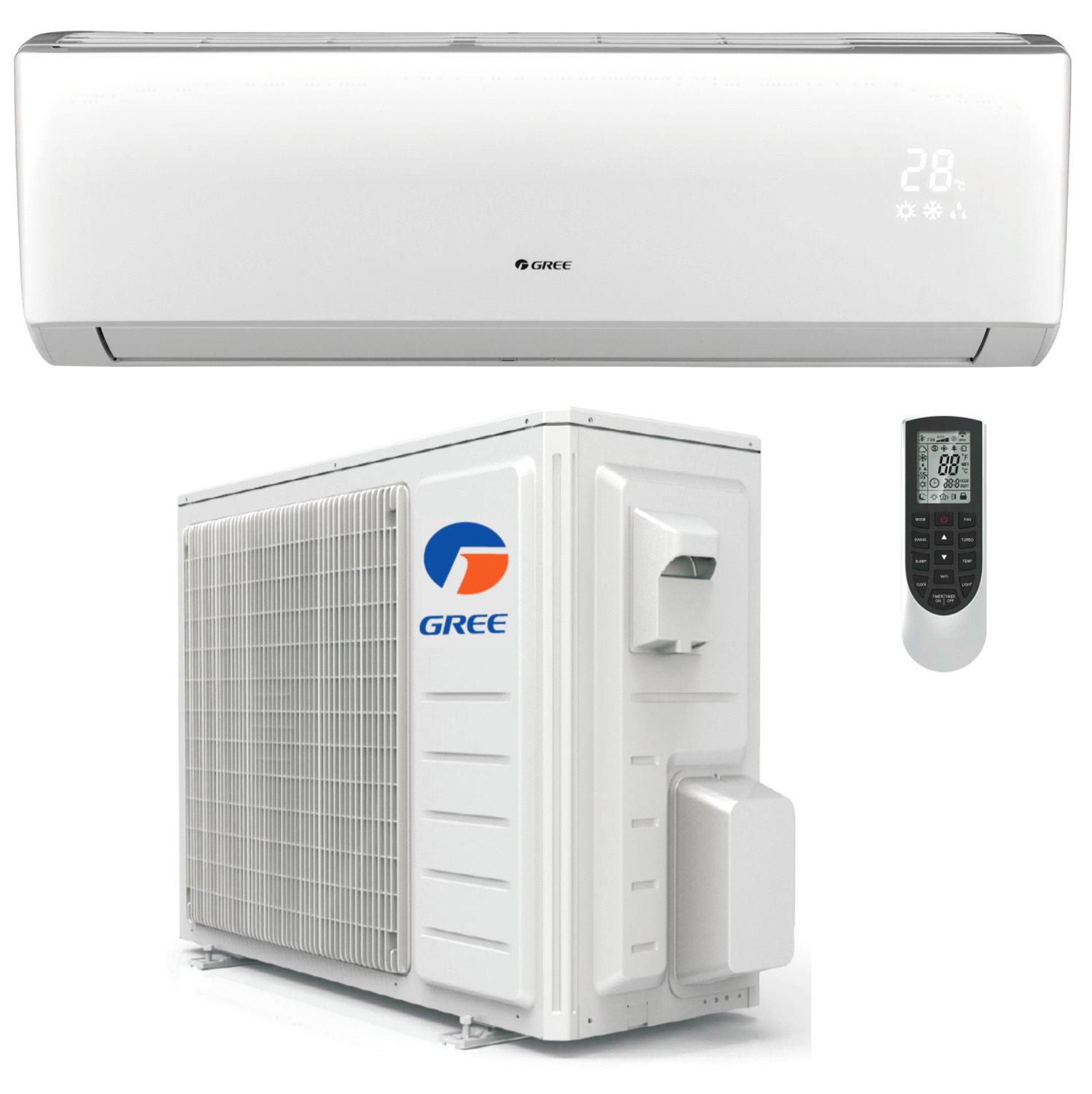

GREE LIVS12HP115V1A Livo Single Zone Ductless Mini Split System with Inverter Heat Pump, 12,000 BTU, 115 Volt, 16.0 SEER, Includes Indoor Wall Unit with Remote and Outdoor Condenser

QUIET, EFFICIENT AND OH-SO-SOPHISTICATED. Slim, stylish and elegant, the new Livo high wall units are the latest addition to the Gree comfort family. These 16-SEER heat pump systems are built around Gree’s G10 Inverter and variable compressor technology, using environmentally friendly R410A refrigerant. Each Livo mini split indoor unit is designed to heat and cool a single room, and will blend seamlessly into any decor. The unobtrusive front panel features a virtually hidden digital LED display, and the unit operates quietly, day after day.

THE MANY FEATURES OF THE LIVO INCLUDE: G10 Inverter Technology, I-Feel Function, Multiple Fan Speeds, Sleep Mode, Blue Fin Condenser Coil, Automatic Operation and Restart, Dehumidification, Timer, Intelligent Preheating, Low Voltage Start-up, Memory, Self-Diagnosis, Vertical Auto Swing, LED Display, Control Lock, Fan Delay, Cooling Range from 0 to 115°F, Heating Range from -4 to 75°F.

Buy From Kingersons.com

FEATURES & BENEFITS

• G10 Inverter Technology
• I-Feel Function
• Multiple Fan Speeds
• Sleep Mode, Blue Fin Condenser Coil
• Automatic Operation and Restart
• Dehumidification
• Timer
• Intelligent Preheating
• Low Voltage Start-up
• Memory
• Self-Diagnosis
• Vertical Auto Swing
• LED Display
• Control Lock
• Fan Delay
• Cooling Range from 0 to 115°F
• Heating Range from -4 to 75°F

SYSTEM PERFORMANCE

• System Type: Heat Pump
• Cooling Capacity (Min./Max.): 12,000
• Heating Capacity (Min./Max.): 13,000
• SEER/EER: 16/10.1
• HSPF/COP: 9.0/3.1
• Energy Star: No
• Cooling Temperature Range: 0 - 115
• Heating Temperature Range: -4 - 75

Buy From Kingersons.com

• INDOOR UNIT

• Air Flow (Min./Max.): 194-400
• Sound Pressure Level (Min./Max.): 29-43
• Dehumidification: 3.0
• Unit Dimensions (WxHxD): 33.3x11.4x8.3
• Package Dimensions (WxHxD): 36.1x11.0x14.3
• Net Gross (Package/Weight): 22/28

• OUTDOOR UNIT

• Compressor Type: DC Inverter Driven Rotary
• Sound Pressure Level: 53
• Unit Dimensions (WxHxD): 33.4x21.3x12.6
• Package Dimensions (WxHxD): 34.6x22.8x14.2
• Net Gross (Packaged/Weight): 67/73
• Refrigerant Charge: R410A/ 31.8

• INSTALLATION

• Line Set Size (Liquid/Suction): 14" x 3/8"
• Pre-Charge Length: 25
• Max. Line Run: 66
• Max. Extension: 33

• ELECTRICAL

• Power Supply: 115v/60Hz
• Rated Current Cooling: 13
• Rated Current Heating: 13.2
• MCA: 20
• MOCP: 30
• Interconnecting Wire: AWG 14/4

MANUFACTURERS WARRANTY

• A warranty period of Seven (7) years on compressor to the original registered end-user.
• A warranty period of Five (5) years on all parts to the original registered end user.
• A warranty period of One (1) year on the remote control provided with the original unit.
• Limited warranty applies only to systems that are properly installed by a state certified or licensed HVAC contractor,under applicable local and state law in accordance with all applicable building codes and permits; GREE installation and operation instructions and good trade practices.
• Warranty applies only to products remaining in their original installation location.
