| Features |
Unit |
Specs |

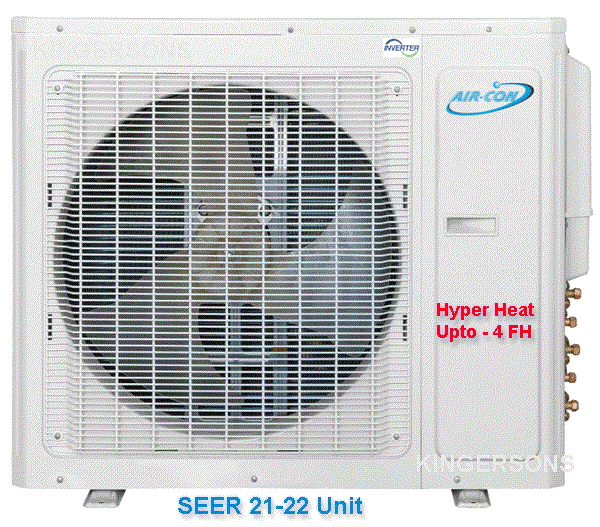

| Model |
- |
AMTCM4H4R30 |
| Product Code |
- |
|
| Cooling Capacity |
kW |
8.30 |
| Cooling Capacity |
Btu/h |
28400 |
| Min. Cooling Capacity |
W |
2400 |
| Min. Cooling Capacity |
Btu/h |
8189 |
| Max. Cooling Capacity |
W |
9800 |
| Max. Cooling Capacity |
Btu/h |
33438 |
| Heating Capacity |
kW |
8.79 |
| Heating Capacity |
Btu/h |
30000 |
| Min. Heating Capacity |
W |
2400 |
| Min. Heating Capacity |
Btu/h |
8189 |
| Max. Heating Capacity |
W |
9500 |
| Max. Heating Capacity |
Btu/h |
32414 |
| EER |
W/W |
3.66 |
| EER |
(Btu/h)/W |
12.50 |
| COP |
W/W |
3.74 |
| COP |
(Btu/h)/W |
12.76 |
| SEER |
- |
21.00 |
| HSPF |
- |
10.50 |
| Air Flow Volume |
m3/h |
4000 |
| Air Flow Volume |
CFM |
2354 |
| Sound Pressure Level |
dB(A) |
59 |
| Sound Power Level |
dB(A) |
69 |
| Rated Voltage |
V |
208/230 |
| Rated Frequency |
Hz |
60 |
| Phases |
- |
1 |
| Cross-sectional Area of Power Cable Conductor |
mm2 |
3.3(AWG12) |
| Recommended Power Cable(Core) |
N |
3 |
| Fuse Current |
A |
30 |
| Circuit Breaker |
A |
30 |
| Cooling Power Input |
kW |
2.27 |
| Heating Power Input |
kW |
2.35 |
| Rated Power Input |
kW |
3.80 |
| Cooling Current Input |
A |
9.87 |
| Heating Current Input |
A |
10.22 |
| Rated Current |
A |
16.86 |
| Starting Current |
A |
/ |
| Compressor Trademark |
- |
GREE |
| Compressor Manufacturer |
- |
ZHUHAI LANDA COMPRESSOR CO.LTD |
| Compressor Model1 |
- |
QXAS-D32zX090A |
| Compressor Type1 |
- |
Inverter Rotary |
| Compressor Capacity |
W |
12300 |
| Compressor Power Input |
W |
4150 |
| Compressor Rated Load Amp (RLA) |
A |
13.9 |
| Compressor Locked Rotor Amp (L.R.A) |
A |
/ |
| Compressor Thermal Protector |
- |
1NT11L—6233 |
| Compressor Crankcase |
W |
40 |
| Compressor Refrigerant Oil Type |
- |
FV50S |
| Compressor Refrigerant Oil Charge Volume |
L |
1 |
| Chassis Electrical Heater Power Input |
W |
96 |
| Chassis Electrical Heater Current |
A |
0.4 |
| Fan Type |
- |
Axial-flow |
| Fan Quantity |
- |
1 |
| Fan Diameter-height |
mm |
550-120 |
| Motor Model |
- |
SWZ150A |
| Motor Type |
- |
DC motor |
| Motor Insulation Class |
- |
E |
| Motor Safe Class |
- |
IPX4 |
| Overload Protector |
- |
/ |
| Motor Full Load Amp(FLA) |
A |
0.68 |
| Fan Motor Drive Type |
- |
|
| Fan Motor Speed |
rpm |
850 |
| Fan Motor Power Output |
W |
100 |
| Fan Motor Power Input |
W |
150 |
| Fan Motor Capacitor |
µF |
/ |
| Condenser Material |
- |
Aluminum Fin-copper Tube |
| Condenser Face Area |
m2 |
0.68 |
| Condenser Pipe Diameter |
mm |
f7.94 |
| Condenser Number of Rows |
- |
2 |
| Condenser Tube Pitch(a)×Row Pitch(b) |
mm |
22×19.05 |
| Condenser Fin Pitch |
mm |
1.4 |
| Condenser Fin Type |
- |
|
| Condenser Fin Colour |
- |
Blue |
| Condenser Length(L) × Height(H) × Width(W) |
mm |
917×748×38.1 |
| Condenser Max. Allowable Pressure |
MPa |
10.0 |
| Permissible Excessive Operating Pressure for the Discharge Side |
MPa |
4.2 |
| Permissible Excessive Operating Pressure for the Suction Side |
MPa |
2.5 |
| Maximum Allowable Pressure |
MPa |
4.2 |
| High Presser Overload Protector |
MPa |
4 |
| Low Presser Overload Protector |
MPa |
/ |
| Cooling Operation Ambient Temperature Range |
FH |
-1 |
| Heating Operation Ambient Temperature Range |
FH |
-4 |
| Maximum drive IDU NO. |
unit |
4 |
| Defrosting Method |
-- |
Automatic Defrosting |
| Isolation |
- |
I |
| Moisture Protection |
-- |
IPX4 |
| Overload Protector |
- |
|
| Climate Type |
- |
T1 |
| Refrigerant |
- |
R410A |
| Refrigerant Charge |
kg |
2.8 |
| Throttling Method |
- |
Electron expansion valve |
| Dimension of Outline(W×D×H) |
mm |
980×427×790 |
| Dimension of Carton Box(L×W×H) |
mm |
1080×485×840 |
| Dimension of Package(L×W×H) |
mm |
1083×488×855 |
| Net Weight |
kg |
70.0 |
| Gross Weight |
kg |
77.0 |
Outdoor Unit Loading Quantity
( 20’ Container ) |
unit |
44 |
Outdoor Unit Loading Quantity
( 40’ Container ) |
unit |
96 |
Outdoor Unit Loading Quantity
( 40’ High Cube Container ) |
unit |
144 |
| Connection Pipe Connection Method |
- |
Flare Connection |
| Not Additional Gas Connection Pipe Length |
m |
40 |
| Connection Pipe Gas Additional Charge |
g/m |
20 |
| Connection Pipe Liquid Pipe Outer Diameter 1 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 2 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 3 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 4 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 5 |
mm |
/ |
| Connection Pipe Gas Pipe Outer Diameter 1 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 2 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 3 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 4 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 5 |
mm |
/ |
| Connection Pipe Max. Height Distance(indoor and indoor) |
m |
7.5 |
| Connection Pipe Max. Height Distance(indoor and outdoor and indoor up) |
m |
15 |
| Connection Pipe Max. Height Distance(indoor and outdoor and outdoor up) |
m |
15 |
| Max. equivalent connection pipe length(outdoor to last indoor) |
m |
25 |
| Connection Pipe Max. Length Distance(total lenght) |
m |
70 |
|
Air Condition Function
|
| Low Ambient Cooling Function |
|
YES |
| Defrosting Time Set Function |
|
YES |
| Low Voltage Startup |
|
YES |
| Compressor With Electric Heater |
|
YES |
| Chassis With Electric Heater |
|
YES |
